Introduction: In the pursuit of performance and aesthetics, the aftermarket automotive industry continually evolves, leveraging cutting-edge technologies to build exciting products using tools and processes that were not available just 10 or 20 years ago. A notable revolution in the production of high-quality aftermarket & OE automotive parts is the use of laser scanners and various metrology tools, especially in the realm of carbon fiber aftermarket components.

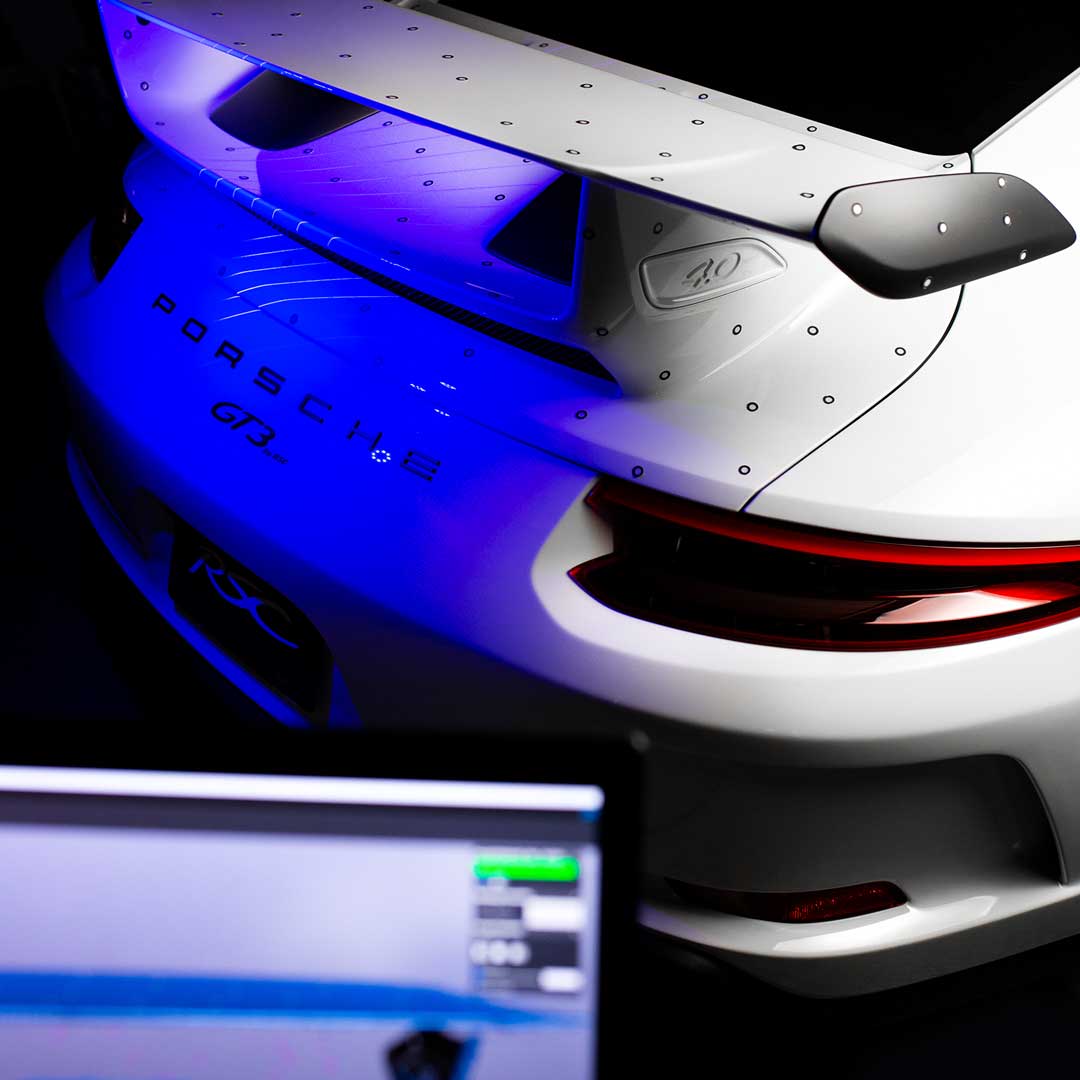

Understanding 3D Laser Scanning: 3D laser scanning is a sophisticated technology that captures the physical shape of an object using laser light. This process doesn't create a 3D replica in the physical sense; instead, it generates a 'point cloud' consisting of millions of precise data points. These points collectively represent the object's surface geometry with high accuracy. In the context of automotive manufacturing, particularly for aftermarket parts, this point cloud data is invaluable. Technicians use it to reverse engineer the precise geometry of vehicle components, translating them into detailed CAD (Computer-Aided Design) models. For parts like carbon fiber body kits, spoilers, and other custom features, this means they can be designed with a perfect fit in mind, adhering to the vehicle's exact contours and specifications. The resulting CAD models are then used for various purposes, including quality control, customizations, or as a basis for further manufacturing processes, ensuring that every curve, angle, and line of the aftermarket parts matches seamlessly with the vehicle, thereby achieving unparalleled precision and fitment.

Enhancing Automotive Parts with Precision: The introduction of 3D laser scanning in crafting automotive parts, particularly those made from carbon fiber, has catalyzed a new era of customized, high-quality automotive components previously unattainable. This technology's ability to swiftly capture the exact geometry of a physical vehicle and digitally transmit that information has opened a myriad of new opportunities for aftermarket brands globally. RSC was at the forefront of adopting this new technology, deploying it in our Huracan CS680 kit as early as 2014

The Carbon Fiber Edge: Carbon fiber parts are highly valued for being lightweight and strong, making them the preferred choice for high-end performance and luxury vehicles. With 3D laser scanning, aftermarket manufacturers like Racing Sport Concepts can develop parts that are far superior to their hand-molded counterparts. It's true that many OEM manufacturers still rely extensively on clay sculpting in new product development. However, they then laser scan those clay models and reverse engineer them into 3D CAD files. The difference is that we use 3D printing to test digitally sculpted parts instead of clay. We use these 3D printed prototypes to test physical examples on vehicles, ensuring that the proportions and volumes harmonize with the vehicle's design. This process also allows us to adjust mounting points or even completely redesign the part based on our real-world installation experience. Additionally, we have the capability to mill molds out of aluminum, steel, or tooling carbon fiber that are precise geometric replicas of the designed part. This milling process allows us to compensate for factors such as the coefficient of thermal expansion, prevent warping, and ensure continued dimensional consistency. The advantages of this approach are extensive.

Overcoming Challenges: Adopting 3D laser scanning for carbon fiber automotive parts presents several unforeseen challenges. In recent years, a large number of low-cost 3D scanners have entered the market. While they may be accurate over small distances, such as 6-8 inches, their accuracy diminishes exponentially when scanning larger objects like automobiles. A scanner might claim an extremely low tolerance, but over what distance? Our testing revealed that lower-end scanners in the $10,000-$30,000 range often had significant deviations over the length of a side rocker or the width of a bumper, for instance. The scan data forms the foundation for ensuring everything else fits properly, so we worked with multiple scanning providers over the years to determine the best equipment for our specific use case of automotive body parts. While many companies might opt to hire a third-party metrologist to scan the vehicle, we found that this approach often left us without specific scan data we needed. No matter the extent of disassembly and reassembly done with the scanning provider there, we frequently came up with new ideas requiring additional data. It is the combination of owning the vehicle, conducting our own laser scanning with top-tier tools (RSC has invested over $100,000 in metrology tools), and honing our workflows over the last decade that enables us to consistently produce the best fitting parts in the industry.

The Road Ahead for Carbon Fiber Parts: The future looks bright for 3D laser scanning in the production of carbon fiber automotive parts. As technology advances, it will become more accessible, allowing for even greater innovation and customization in the aftermarket industry. This means more efficient production, more creative designs, and ultimately, a broader range of high-quality, custom carbon fiber parts for automotive enthusiasts.

Conclusion: 3D laser scanning is setting a new standard in the production of automotive parts, particularly in the realm of carbon fiber aftermarket components. With its promise of precision, efficiency, and customization, it's not just changing how parts are made; it's enhancing the entire experience of vehicle ownership and driving.
